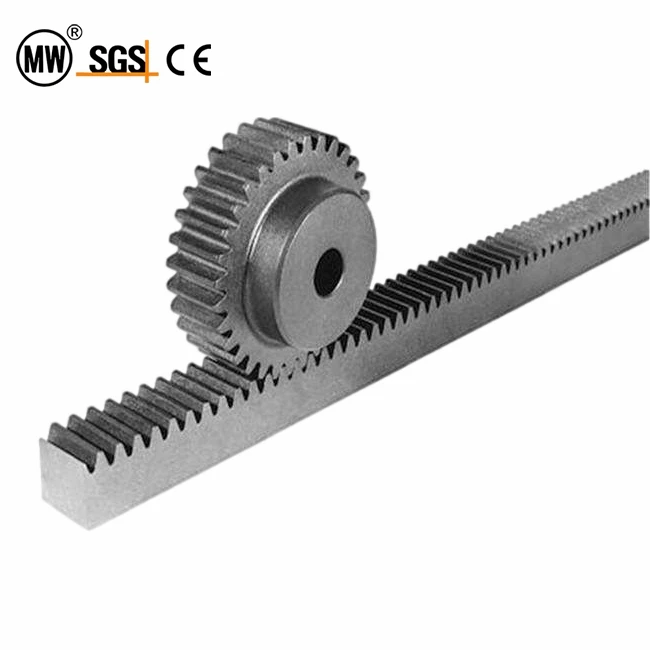

Hangzhou Ocean Industry Co., Ltd. Xitoyda standart tishli tokchalar ishlab chiqaruvchilari va yetkazib beruvchilaridan biridir. Fabrikamızdan Xitoyda ishlab chiqarilgan ulgurji mustahkam sanoat zanjirlari va elektr uzatish qismlariga xush kelibsiz. Barcha tayyorlangan mahsulotlar yuqori sifat va raqobatbardosh narxga ega.
Boshqa modulli tishli raf mavjud, shuningdek, CP yoki DP tishlari mavjud, Ocean sizning chizmalaringiz bo'yicha ishlab chiqarishi mumkin. Ocean Standard Gear Rackning aksariyati 2005 yildan beri Yevropaga eksport qilinadi. Okean OEM mijozlarining ko'pchiligi chizmalarini jo'natadi va Ocean mahsulotlarini chizmalariga ko'ra, agar sizda chizmangiz bo'lmasa, Ocean ham sizning namunangizga ko'ra ishlab chiqarishi mumkin.
Parametr
Konvertatsiya jadvali
| Modul | CP | DP |
| 0.39688 | 1.24682 | 64 |
| 0.5 | 1.57080 | 50.8 |
| 0.52917 | 1.66243 | 48 |
| 0.6 | 1.88496 | 42.33333 |
| 0.79375 | 2.49364 | 32 |
| 0.79577 | 2.5 | 31.91858 |
| 0.8 | 2.51327 | 31.75 |
| 1 | 3.14159 | 25.4 |
| 1.05833 | 3.32485 | 24 |
| 1.25 | 3.92699 | 20.32 |
| 1.27000 | 3.98982 | 20 |
| 1.5 | 4.71239 | 16.93333 |
| 1.59155 | 5 | 15.95929 |
| 1.58750 | 4.98728 | 16 |
| 2 | 6.28319 | 12.70 |
| 2.11667 | 6.64970 | 12 |
| 2.5 | 7.85398 | 10.16 |
| 2.54000 | 7.97965 | 10 |
| 3 | 9.42478 | 8.46667 |
| 3.17500 | 9.97456 | 8 |
| 3.18310 | 10 | 7.97965 |
| 4 | 12.56637 | 6.35 |
| 4.23333 | 13.29941 | 6 |
| 4.77465 | 15 | 5.31976 |
| 5 | 15.70796 | 5.08 |
| 5.08000 | 15.95929 | 5 |
| 6 | 18.84956 | 4.23333 |
| 6.35000 | 19.94911 | 4 |
| 6.36620 | 20 | 3.98982 |
| 8 | 25.13274 | 3.175 |
| 8.46667 | 26.59882 | 3 |
| 10 | 31.41593 | 2.54 |
| Dentatura diritta | To'g'ridan-to'g'ri tishlash | GeradeVerzahnung | Tish protezlari | Dentado derecho | |||||||||||||||
| Angolo bosimi 20 daraja | Bosim burchagi 20 daraja | Eingriffswinskel 20 daraja | Bosish burchagi 20 daraja | Angulode presión 20 daraja | |||||||||||||||
| MaterialeC45E UNI EN 10083-1 | Material C45E UNI EN 10083-1 | WerkstoffC45E UNI EN 10083-1 | Matière C45E UNI EN 10083-1 | Material C45E UNI EN 10083-1 | |||||||||||||||

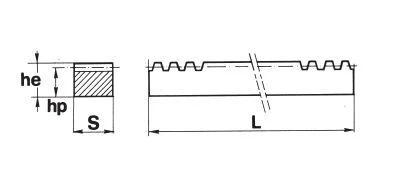

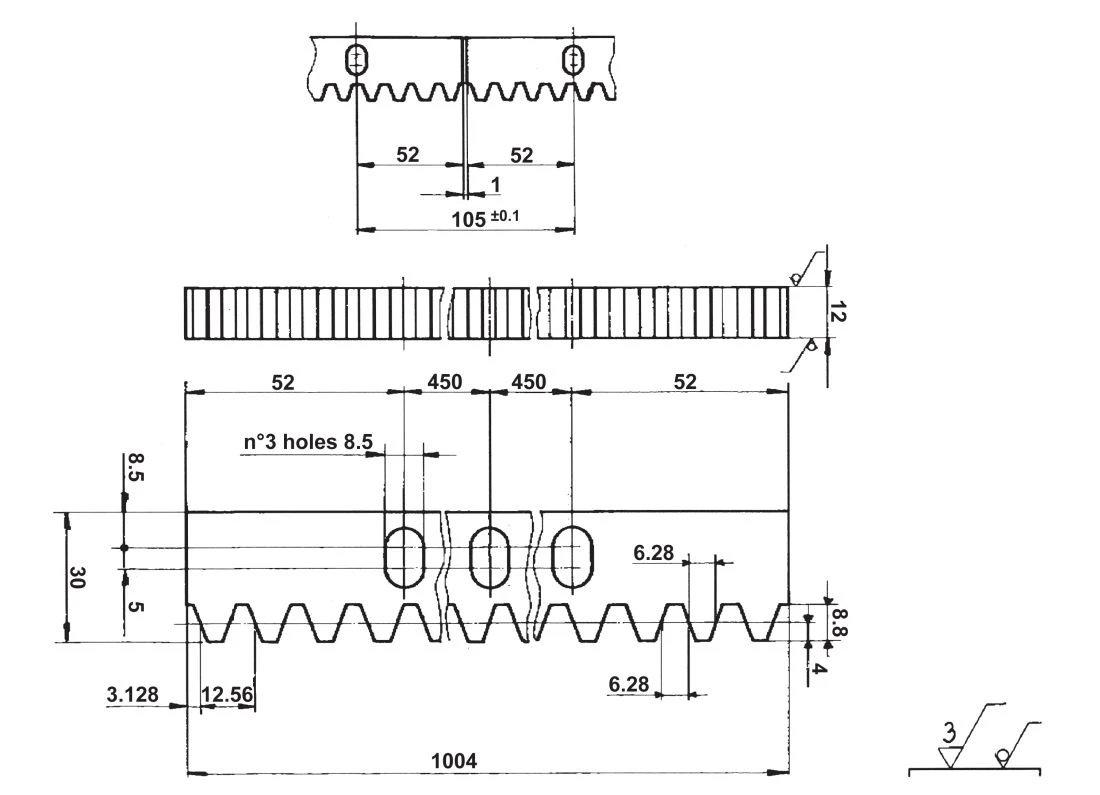

| Mod. | hp | u x S | L | ||||||||||||||||
| 500 | 1000 | 2000 | 3000 | ||||||||||||||||
| Cod. | Kg | Cod. | Kg | Cod. | Kg | Cod. | Kg | ||||||||||||
| 1 | 140 | 15 x 15 | CR 26050 | 820 | CR 26100 | 1,500 | CR 26200 | 3,100 | CR 26300 | 4,900 | |||||||||
| 15 | 155 | 17 x 17 | CR 27050 | 1,000 | CR 27100 | 2,000 | CR 27200 | 4,000 | CR 27300 | 6,100 | |||||||||
| 2 | 180 | 20 x 20 | CR 28050 | 1,400 | CR 28100 | 2,700 | CR 28200 | 5,400 | CR 28300 | 8,400 | |||||||||
| 25 | 225 | 25 x 25 | CR 29050 | 2,100 | CR 29100 | 4,300 | CR 29200 | 8,600 | CR 29300 | 11,900 | |||||||||
| 3 | 270 | 30 x 30 | CR 30050 | 3,100 | CR 30100 | 6,300 | CR 30200 | 12,500 | CR 30300 | 18,600 | |||||||||
| 4 | 18 | 22 x 22 | CR 37050 | 1,400 | CR 37100 | 3,250 | CR 37200 | 6,800 | |||||||||||
| 4 | 210 | 25 x 25 | CR 36050 | 1,800 | CR 36100 | 3,650 | CR 36200 | 7,300 | CR 36300 | 10,900 | |||||||||
| 4 | 260 | 30 x 30 | CR 33050 | 3,050 | CR 33100 | 6,000 | CR 33200 | 11,900 | CR 33300 | 18,100 | |||||||||
| 4 | 360 | 40 x 40 | CR 31050 | 5,500 | CR 31100 | 11,100 | CR 31200 | 22,000 | CR 31300 | 31,300 | |||||||||
| 5 | 450 | 50 x 50 | CR 32050 | 8,300 | CR 32100 | 17,500 | CR 32200 | 34,600 | CR 32300 | 45,300 | |||||||||
| 6 | 54 | 60 x 60 | CR 34050 | 12,650 | CR 34100 | 25,000 | CR 34200 | 51,000 | |||||||||||
| 8 | 720 | 80 x 80 | CR 39050 | 22,400 | CR 39100 | 45,000 | CR 39200 | 90,000 | |||||||||||
| Dati texnikasi Texnik spetsifikatsiyalar Technische Daten Donnees texnikasi Datos tecnicos | |||||||||||||||||||
| Mod. | Passo / Pitch Teilung / Pas Paso |
S | L | ||||||||||||||||
| 500 | 1000 | 2000 | 3000 | ||||||||||||||||
| Z | Lr | Z | Lr | Z | Lr | Z | Lr | ||||||||||||
| 1 | 31,416 | 5 | 159 | 49,951 | 319 | 100,217 | 637 | 200,120 | 955 | 300,023 | |||||||||
| 15 | 47,124 | 6 | 106 | 49,951 | 213 | 100,374 | 425 | 200,277 | 637 | 300,180 | |||||||||
| 2 | 62,832 | 6 | 80 | 50,266 | 160 | 100,531 | 319 | 200,434 | 478 | 300,337 | |||||||||
| 25 | 78,540 | 7 | 64 | 50,266 | 128 | 100,531 | 255 | 200,277 | 382 | 300,023 | |||||||||
| 3 | 94,248 | 8 | 53 | 49,951 | 107 | 100,845 | 213 | 200,748 | 319 | 300,651 | |||||||||
| 4 | 125,664 | 8 | 40 | 50,266 | 80 | 100,531 | 160 | 201,062 | 239 | 300,337 | |||||||||
| 5 | 157,080 | 10 | 32 | 50,266 | 64 | 100,531 | 128 | 201,062 | 191 | 300,023 | |||||||||
| 6 | 188,496 | 10 | 27 | 50,894 | 54 | 101,788 | 107 | 201,691 | |||||||||||
| 8 | 251,328 | 10 | 20 | 50,266 | 40 | 100,531 | 80 | 201,062 | |||||||||||
| Balandligi 12,566 mm | Qadamligi 12,566 mm | Teilung 12,566 mm | Balandligi 12,566 mm | Balandligi 12,566 mm | |||||||||||||
| = 4 moduli | = 4 moduli | = 4 moduli | = 4 moduli | = 4 moduli | |||||||||||||
| Dentatura diritta | To'g'ridan-to'g'ri tishlash | GeradeVerzahnung | Tish protezlari | Dentado derecho | |||||||||||||
| Angolo bosimi 20 daraja | Bosim burchagi 20 daraja | Eingriffswinskel 20 daraja | Bosish burchagi 20 daraja | Angulode presiòn 20 daraja | |||||||||||||
| Materiallar | Material | Werkstoff | Matiere | Material | |||||||||||||
| C45E UNI EN 10083-1 | C45E UNI EN 10083-1 | C45E UNI EN 10083-1 | C45E UNI EN 10083-1 | C45E UNI EN 10083-1 | |||||||||||||
| Trattamento superficiale: | Yuzaki ishlov berish: | Oberflachenbehandlung: | Yuzaki xususiyatlari: | Tratamiento yuzaki: | |||||||||||||
| Sinkatura | Sink qoplamasi | Verzinken | Zingage | Sinkado | |||||||||||||
| Kod | CP | Modul | L | Tishlar soni | B | A0 | A1 | D | I | Teshiklar soni | Vida | A | Φd1 | ΦD | E | f | Fta kN | KG |
| CP-05005-JIS1 | 5 | 1. 5915 | 500 | 100 | 15 | 20 | 18.41 | 40 | 140 | 4 | M5 | 8 | 6 | 10 | 6 | 1.5 | 0.59 | 1.1 |
| CP-05005-JIS1-N | 5 | 1. 5915 | 500 | 100 | 15 | 20 | 18.41 | * | * | * | * | * | * | * | * | 1.5 | 0.59 | 1. 1 |
| CP-05010-J1S1-N | 5 | 1. 5915 | 1000 | 200 | 15 | 20 | 18.41 | * | * | * | * | * | * | * | * | 1.5 | 0.59 | 2.1 |
| CP-10005-JIS1 | 10 | 3.1831 | 500 | 50 | 30 | 35 | 31.82 | 40 | 140 | 4 | M10 | 14 | 11 | 17.5 | 10.8 | 1.5 | 2.38 | 3.7 |
| CP- 10005-J1S1-N | 10 | 3.1831 | 500 | 50 | 30 | 35 | 31.82 | * | * | * | * | * | * | * | * | 1.5 | 2.38 | 3.7 |
| CP- 10010-J1S1-N | 10 | 3.1831 | 1000 | 100 | 30 | 35 | 31.82 | * | * | * | * | * | * | * | * | 1.5 | 2.38 | 7.5 |
| Kod | CP | Modul | L | Tishlar soni | B | A0 | A1 | D | I | Teshiklar soni | Vida | A | Φd1 | ΦD | E | f | Fta kN | KG |
| CP-05005-JIS1 | 5 | 1. 5915 | 500 | 100 | 15 | 20 | 18.41 | 40 | 140 | 4 | M5 | 8 | 6 | 10 | 6 | 1.5 | 0.59 | 1.1 |
| CP-05005-JIS1-N | 5 | 1. 5915 | 500 | 100 | 15 | 20 | 18.41 | * | * | * | * | * | * | * | * | 1.5 | 0.59 | 1. 1 |
| CP-05010-J1S1-N | 5 | 1. 5915 | 1000 | 200 | 15 | 20 | 18.41 | * | * | * | * | * | * | * | * | 1.5 | 0.59 | 2.1 |
| CP-10005-JIS1 | 10 | 3.1831 | 500 | 50 | 30 | 35 | 31.82 | 40 | 140 | 4 | M10 | 14 | 11 | 17.5 | 10.8 | 1.5 | 2.38 | 3.7 |
| CP- 10005-J1S1-N | 10 | 3.1831 | 500 | 50 | 30 | 35 | 31.82 | * | * | * | * | * | * | * | * | 1.5 | 2.38 | 3.7 |
| CP- 10010-J1S1-N | 10 | 3.1831 | 1000 | 100 | 30 | 35 | 31.82 | * | * | * | * | * | * | * | * | 1.5 | 2.38 | 7.5 |
| Kod | CP | Modul | L | Tishlar soni | B | A0 | A1 | D | I | Teshiklar soni | Vida | A | Φd1 | ΦD | E | f | Fta kN | KG |
| CP-05005-JIS1 | 5 | 1. 5915 | 500 | 100 | 15 | 20 | 18.41 | 40 | 140 | 4 | M5 | 8 | 6 | 10 | 6 | 1.5 | 0.59 | 1.1 |
| CP-05005-JIS1-N | 5 | 1. 5915 | 500 | 100 | 15 | 20 | 18.41 | * | * | * | * | * | * | * | * | 1.5 | 0.59 | 1. 1 |
| CP-05010-J1S1-N | 5 | 1. 5915 | 1000 | 200 | 15 | 20 | 18.41 | * | * | * | * | * | * | * | * | 1.5 | 0.59 | 2.1 |
| CP-10005-JIS1 | 10 | 3.1831 | 500 | 50 | 30 | 35 | 31.82 | 40 | 140 | 4 | M10 | 14 | 11 | 17.5 | 10.8 | 1.5 | 2.38 | 3.7 |
| CP- 10005-J1S1-N | 10 | 3.1831 | 500 | 50 | 30 | 35 | 31.82 | * | * | * | * | * | * | * | * | 1.5 | 2.38 | 3.7 |
| CP- 10010-J1S1-N | 10 | 3.1831 | 1000 | 100 | 30 | 35 | 31.82 | * | * | * | * | * | * | * | * | 1.5 | 2.38 | 7.5 |
