Hangzhou Ocean Industry Co., Ltd. Xitoyda tortish zanjirlarining etakchi ishlab chiqaruvchilari va yetkazib beruvchilaridan biridir. Fabrikamızdan Xitoyda ishlab chiqarilgan ulgurji mustahkam sanoat zanjirlari va elektr uzatish qismlariga xush kelibsiz. Barcha tayyorlangan mahsulotlar yuqori sifat va raqobatbardosh narxga ega.
Hangzhou Ocean Industry CO., Ltd. professional ishlab chiqaruvchi va bizning mahsulotlarimizning aksariyati 2005 yildan beri Evropaga eksport qilinmoqda.
Bizning maxsus qo'shimchalarimiz va qishloq xo'jaligi zanjirlarimiz barcha og'ir ish sharoitlariga mos keladi. Ular aşınmaya bardoshli qotishma po'latdan-korroziyaga qarshi qoplamali va kombaynlar, traktorlar va preslash mashinalari uchun moslashtirilgan K, F, CA qo'shimchalari bilan mos keladi. Uzoqroq xizmat qilish muddati uchun yuqori cho'zilish kuchi, global qishloq xo'jaligi texnikasi ulgurji sotuvchilari uchun moslashuvchan OEM va ODM.
Parametr
OEM mijozlarimizning ko'pchiligi bizga chizilgan rasmni jo'natadi va biz ularning chizmasi bo'yicha ishlab chiqaramiz. Siz bizga chizmani elektron pochta orqali ham yuborishingiz mumkin-u holda muhandisimiz yordam taklif qiladi. Agar chizma bo'lmasa, namuna ham OK. Katalog ham OK.
Chizmalar va parametr ma'lumotlari
Plitalar zanjiriga qo'shimcha ravishda, tortish zanjiri garaj zanjiri, ko'p{0}}plitali pinli zanjir va-erkin ko'tarish zanjirini ham o'z ichiga oladi, ular orasida ko'p{2}}plitali pin zanjiri DIN standartiga javob beradi va rulonli{3}}bo'sh ko'tarish zanjiri o'lchami bo'yicha standart zanjir bilan bir xil bo'ladi.
Yuqori sifatli xomashyo va ilg'or qayta ishlash texnologiyasi-foydalanish. mahsulotlar silliq, xavfsiz va ishonchli ko'tarish jarayonini ta'minlaydigan yuqori kuchlanish va yuqori charchoq kuchiga ega. Garaj uchun rolikli zanjirning kuchlanish kuchi ISO 606 standartidagi rolikli zanjirning minimal kuchlanish kuchidan 1,2 baravar ko'p.
Mahsulotlar to'xtash uskunalari, vertikal yuk ko'tarish uskunalari va boshqa ob'ektlarni ko'tarish va o'tishda keng qo'llaniladi.

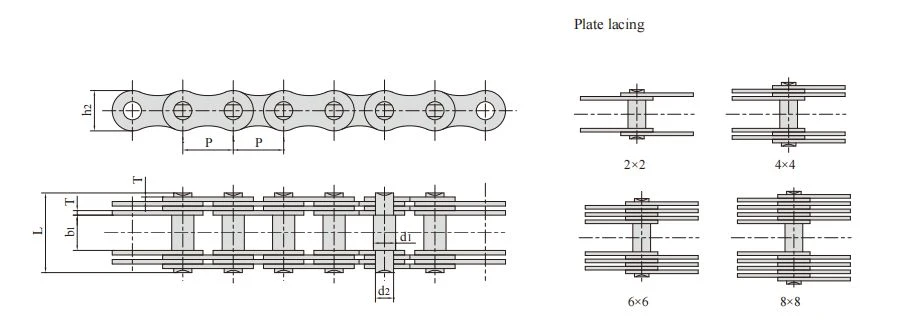

Gall zanjirlari
| Zanjir raqami | Pitch | Kengligi orasida ichki plitalar |
Plita bog'lash |
Pin diametri |
Pin uzunligi |
Plita chuqurlik |
Plita qalinligi |
Kuchlanish kuch |
Og'irligi boshiga metr |
|
| P | b1 min |
d1 maks |
d2 maks |
L maks |
h2 maks |
T maks |
Q min |
q | ||
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | ||
| MP15 | 15 | 12 | 2×2 | 5 | 4 | 25 | 12 | 2.03 | 5.0/1125 | 0.7 |
| MP20 | 20 | 15 | 2×2 | 8 | 6 | 28 | 15 | 2.03 | 12.5/2812 | 1.1 |
| MP25 | 25 | 18 | 2×2 | 10 | 8 | 36 | 18 | 3.00 | 25.0/5624 | 1.8 |
| MP30 | 30 | 20 | 4×4 | 11 | 9 | 51 | 20 | 3.00 | 40.0/8999 | 3.4 |
| MP35 | 35 | 22 | 4×4 | 12 | 10 | 53 | 26 | 3.00 | 60.0/13498 | 4.5 |
| MP40 | 40 | 25 | 4×4 | 14 | 12 | 58 | 32 | 3.00 | 80.0/17998 | 5.0 |
| MP45 | 45 | 30 | 4×4 | 17 | 14 | 63 | 35 | 3.00 | 100.0/22497 | 7.0 |
| MP50 | 50 | 35 | 4×4 | 22 | 18 | 90 | 40 | 4.50 | 150.0/33746 | 11.3 |
| MP55 | 55 | 40 | 4×4 | 24 | 21 | 108 | 42 | 6.00 | 200.0/44994 | 14.5 |
| MP60 | 60 | 45 | 4×4 | 26 | 23 | 114 | 46 | 6.00 | 250.0/56243 | 17.1 |
| MP70 | 70 | 50 | 6×6 | 32 | 28 | 148 | 55 | 6.00 | 375.0/84364 | 34.0 |
| MP80 | 80 | 60 | 6×6 | 36 | 32 | 159 | 60 | 6.00 | 500.0/112486 | 39.0 |
| MP90 | 90 | 70 | 6×6 | 40 | 36 | 184 | 70 | 7.00 | 750.0/168728 | 53.0 |
| MP100 | 100 | 80 | 8×8 | 45 | 40 | 224 | 80 | 7.00 | 1000.0/224972 | 77.0 |
| MP110 | 110 | 90 | 8×8 | 50 | 45 | 236 | 90 | 7.00 | 1250.0/281215 | 90.0 |
| MP120 | 120 | 100 | 8×8 | 55 | 50 | 262 | 100 | 8.00 | 1500.0/337458 | 112.0 |
| Zanjir raqami | Pitch | Kengligi orasida ichki plitalar |
Plita bog'lash |
Pin diametri |
Pin uzunligi |
Plita chuqurlik |
Plita qalinligi |
Kuchlanish kuch |
Og'irligi boshiga metr |
|
| P | b1 min |
d1 maks |
d2 maks |
L maks |
h2 maks |
T maks |
Q min |
q | ||
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | ||
| LF30 | 30.0 | 16.5 | 2×2 | 6.0 | 5.00 | 27.7 | 15.7 | 2.03 | 20.0/4496 | 0.72 |
| MP50F2 | 50.0 | 38.0 | 6×6 | 22.0 | 18.00 | 85.0 | 40.0 | 3.00 | 250.0/56202 | 11.11 |
| MP50.8 | 50.8 | 36.0 | 6×6 | 22.0 | 17.81 | 85.4 | 42.0 | 3.25 | 200.0/44961 | 11.90 |
| MP70F1 | 70.0 | 21.0 | 2×2 | 16.5 | 14.00 | 51.5 | 30.5 | 6.00 | 145.0/32597 | 4.16 |
| MP70F2 | 70.0 | 50.0 | 8×8 | 32.0 | 28.00 | 158.0 | 55.0 | 5.00 | 375.0/84303 | 44.00 |
| MP70F3 | 70.0 | 52.0 | 8×8 | 32.0 | 28.00 | 160.0 | 55.0 | 5.00 | 375.0/84303 | 31.62 |
| MP80F1 | 80.0 | 60.0 | 8×8 | 36.0 | 32.00 | 170.0 | 60.0 | 5.00 | 500.0/112404 | 35.32 |
| *MP90F2 | 90.0 | 60.4 | 6×6 | 40.0 | 37.00 | 182.0 | 70.0 | 8.00 | 700.0/157366 | 52.70 |
| *MP90F1 | 90.0 | 60.0 | 4×4 | 36.0 | 32.00 | 146.0 | 60.0 | 8.00 | 600.0/134885 | 32.22 |
| *MP110F1 | 110.0 | 90.0 | 8×8 | 50.0 | 45.00 | 239.0 | 90.0 | 7.00 | 1250.0/281011 | 87.50 |
| Eslatma:*to'g'ri bog'lovchi plastinka degan ma'noni anglatadi, pinning ikkala uchi yuvish mashinasi bilan | ||||||||||

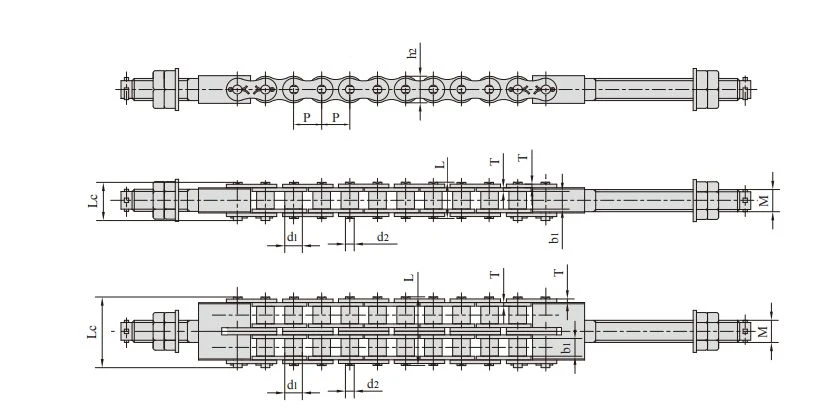

Avtoturargoh zanjirlari
| Zanjir raqami | Pitch | Rolik diametri |
Kengligi orasida ichki plitalar |
Pin diametri |
Pin uzunligi |
Ichki plastinka chuqurlik |
Plita qalinligi |
Bolt turi |
Kuchlanish kuch |
O'rtacha kuchlanish kuch |
Og'irligi boshiga metr |
|
| P | d1 maks |
b1 min |
d2 maks |
L maks |
Lc maks |
h2 maks |
T maks |
M | Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| 16ALT-1 | 25.40 | 15.88 | 15.75 | 7.92 | 32.7 | 36.5 | 24.0 | 3.25 | M20 | 71.55/16261 | 81.8 | 2.60 |
| 16ALT-2 | 25.40 | 15.88 | 15.75 | 7.92 | 62.7 | 65.8 | 24.0 | 3.25 | M20 | 143.10/32523 | 166.3 | 5.15 |
| 20ALT-1 | 31.75 | 19.05 | 18.90 | 9.53 | 40.4 | 44.7 | 30.0 | 4.00 | M24 | 107.85/24511 | 118.6 | 3.91 |
| 20ALT-2 | 31.75 | 19.05 | 18.90 | 9.53 | 76.4 | 80.5 | 30.0 | 4.00 | M24 | 215.70/49023 | 234.4 | 7.80 |
| 20ALT-3 | 31.75 | 19.05 | 18.90 | 9.53 | 112.2 | 116.3 | 30.0 | 4.00 | M24 | 323.55/73534 | 351.6 | 11.77 |
| 24ALT-1 | 38.10 | 22.23 | 25.22 | 11.10 | 50.3 | 54.3 | 35.7 | 4.80 | M30 | 149.20/330909 | 161.1 | 5.62 |
| 24ALT-2 | 38.10 | 22.23 | 25.22 | 11.10 | 95.8 | 99.7 | 35.7 | 4.80 | M30 | 298.40/67818 | 322.2 | 11.70 |
| Zanjir raqami | Pitch | Boush diametri |
Rolik diametri |
Orasidagi kenglik ichki plitalar |
Pin diametri |
Pin uzunligi |
Plita chuqurlik |
Plita qalinligi |
Qo'shimcha o'lcham |
Kuchlanish kuch |
||||
| P | d1 maks |
d4 min |
d5 min |
b1 | d2 maks |
L maks |
h2 | t/T | C | H | L1 | L2 | Q min |
|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| P450F1 | 450.0 | 85.0 | 137.0 | 158.0 | 75 | 55 | 153 | 171 | 16/14 | 630 | 160 | 178 | 278 | 1800/404640 |
| P450F2 | 450.0 | 85.0 | 136.5 | 180.0 | 75 | 55 | 174 | 171 | 16/14 | 675 | 170 | 166 | 282 | 1764/396547 |
| P450F4 | 450.0 | 85.0 | 136.5 | 180.0 | 75 | 55 | 174 | 171 | 16/14 | 630 | 160 | 166 | 282 | 1764/396547 |

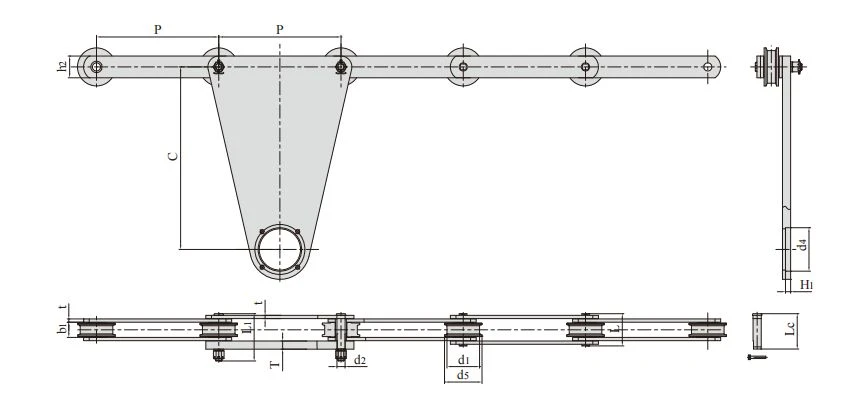

| Zanjir raqami | Pitch | Rolik diametri |
Orasidagi kenglik ichki plitalar |
Pin diametri |
Pin uzunligi |
Plita chuqurlik |
Plita qalinligi |
Qo'shimcha o'lcham |
Kuchlanish kuch |
|||||
| P | d1 maks |
d5 min |
b1 | d2 maks |
L maks |
Lc maks |
L1 maks |
h2 | t/T | C | d4 | H1 | Q min |
|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| P450F5 | 450 | 120 | 138 | 56 | 30 | 120 | 130.0 | 174.0 | 80 | 12.0/30.0 | 672 | 160.0 | 19 | 450.0/101160 |
| P450F6 | 450 | 120 | 140 | 84 | 36 | 150 | 159.0 | 210.0 | 100 | 12.0/30.0 | 672 | 160.0 | 19 | 800.0/179840 |
| P450F13 | 450 | 120 | 140 | 84 | 36 | 150 | 159.0 | 210.0 | 100 | 12.0/30.0 | 675 | 135.0 | 13 | 800.0/179840 |
| *P460F1 | 460 | 118 | 138 | 51 | 36 | - | 134.5 | 173.5 | 90 | 14.0/20.0 | 665 | 110.4 | - | 650.0/146120 |
| P460F2 | 460 | 120 | 140 | 84 | 36 | 150 | 159.0 | 202.0 | 100 | 12.0/25.0 | 675 | 135.0 | 13 | 800.0/179840 |
| P460F3 | 460 | 130 | 144 | 60 | 36 | 126 | 135.0 | 185.0 | 100 | 12.0/30.0 | 650 | 110.0 | - | 800.0/179840 |
| P460F5 | 460 | 100 | 119 | 55 | 30 | 118 | 130.0 | 160.0 | 75 | 12.0/20.0 | 570 | 107.0 | - | 650.0/146120 |
| * Ichkarida podshipnik bilan | ||||||||||||||
Roliksiz yuk ko'taruvchi zanjirlar
| Zanjir raqami | Pitch | Bush diametri |
Kengligi orasida ichki plitalar |
Pin diametri |
Pin uzunligi |
Ichki plastinka chuqurlik |
Plita qalinligi |
Kuchlanish kuch |
O'rtacha kuchlanish kuch |
Og'irligi boshiga metr |
|
| P | d1 maks |
b1 min |
d2 maks |
L maks |
Lc maks |
h2 maks |
T maks |
Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| 45-1 | 12.700 | 5.63 | 7.85 | 3.96 | 16.6 | 17.8 | 12.00 | 1.50 | 14.10/3205 | 17.5 | 0.54 |
| 55-1 | 15.875 | 7.03 | 9.40 | 5.08 | 20.7 | 22.2 | 15.09 | 2.03 | 22.20/5045 | 29.4 | 0.83 |
| 65-1 | 19.050 | 8.33 | 12.57 | 5.94 | 25.9 | 27.7 | 18.00 | 2.42 | 31.80/7227 | 41.5 | 1.22 |
| 85-1 | 25.400 | 11.10 | 15.75 | 7.92 | 32.7 | 35.0 | 24.00 | 3.25 | 56.70/12886 | 69.4 | 2.16 |
| 105-1 | 31.750 | 13.60 | 18.90 | 9.53 | 40.4 | 44.7 | 30.00 | 4.00 | 88.50/20114 | 109.2 | 3.31 |
| 125-1 | 38.100 | 15.60 | 25.22 | 11.10 | 50.3 | 54.3 | 35.70 | 4.80 | 127.00/28864 | 156.3 | 4.97 |
| 145-1 | 44.450 | 18.00 | 25.22 | 12.70 | 54.4 | 59.0 | 41.00 | 5.60 | 172.40/39182 | 212.0 | 6.50 |
| 165-1 | 50.800 | 20.00 | 31.55 | 14.27 | 64.8 | 69.6 | 47.80 | 6.40 | 226.80/51545 | 278.9 | 8.70 |
TSS
Savol: tortish zanjiri qaysi asosiy ishlashga e'tibor beradi?
Javob: Yuqori yuk ko'tarish qobiliyati va barqaror tortishish jarayonini ta'minlash uchun minimal cho'zilish.
Savol: Tez-tez og'ir tortishish sharoitida xizmat muddatini qanday uzaytirish mumkin?
Javob: Toʻliq{0}}issiqlik bilan ishlov berilgan pin va yenglar ishqalanishni samarali ravishda kamaytiradi.
Savol: Agar siz mahsulotni veb-saytimizda topa olmasangiz, keyin nima qilasiz?
Javob: Iltimos, bizga mahsulot rasmlari va chizmalari bilan elektron pochta orqali yoki boshqa usullar bilan so'rov yuboring va biz tekshiramiz.
Savol: Sizning etkazib berish muddati va jo'natish muddati qancha?
Javob: 1. Namunaviy yetkazib berish-vaqtlari: odatda 10 ish kuni.
2.Ishlab chiqarish muddati-: depozitni olgandan keyin 20-40 ish kuni.
